用她随时随地监控家里的亮度吧!
来源:  时间:2015-10-19
分享到:

我们在家居生活中,亮度是保护我们眼睛最重要的灵药,家中许多老人、儿童等在房间里面,如果亮度不足,不但没有安全感,对视力的保健,更是一大杀手。如果我们如果在家里看到这样的情形,当然可以马上调整光线,但是如果我们在外面上班,就不太容易查觉到这样隐藏的问题。

因此,如果我们用Arduino来照顾我们的眼睛,可以通过手机上网,直接使用浏览器可以监控我们家的亮度或许是个可行的应用,所以我们想到使用 Arduiono,通过简单的上网扩充卡,瞬间就让我们的家庭进化成先进的智慧家庭。所以本文就要告诉读者,如何简单、快速、有效的建立一个居家亮度监控的物联网。

Arduino Ethernet Shield 简介

Ethernet Shield(W5100) 主要特色是把 TCP/IP Protocols (TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet) 做在硬件电路上,减轻了单芯片(MCU )的负担 (也就是 Arduino 开发板的负担)。

Arduino 程序只要使用 Ethernet Library 便可以轻易完成连至因特网的动作,不过 W5100 也不是没有缺点,因为它有一个限制,就是最多只允许同时 4 个 socket 联机。

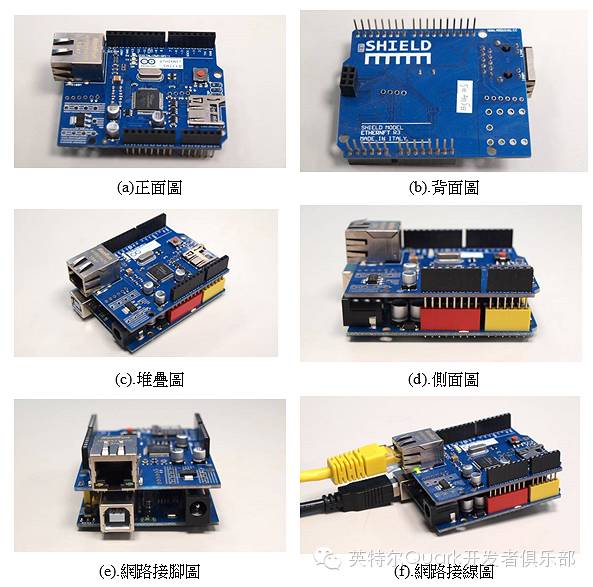

Arduino Ethernet Shield 使用加长型的 Pin header (如下图.(a)、下图.(b)),可以直接插到 Arduino 控制板上 (如下图.(c)、 下图.(d) 、下图.(e)),而且原封不动地保留了 Arduino 控制板的 Pin Layout,让使用者可以在它上面迭其它的扩充板(如下图.(c) 、 下图.(d) 、 下图.(e))。

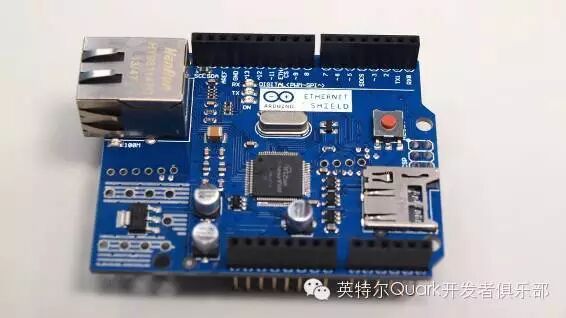

▼ Ethernet Shield(W5100)

比较新的 Ethernet Shield 增加了 micro-SD card 插槽,可以用来储存档案,你可以用 Arduino 内建的 SD library 来存取板子上的 SD card。此外,Ethernet Shield 兼容于 UNO 和 Mega 2560 控制板。


Arduino 开发板跟 W5100 以及 SD card 之间的通讯都是透过 SPI bus (通过 ICSP header)。

以 UNO开发板 而言,SPI bus 脚位位于 pins 11, 12 和 13,而 Mega 2560开发板 则是 pins 50, 51 和 52。UNO 和 Mega 2560 都一样,pin 10 是用来选择 W5100,而 pin 4 则是用来选择 SD card。这边提到的这几支脚位都不能拿来当 GPIO 使用,请读者勿必避开这两个GPIO脚位。

另外,在 Arduino Mega 2560 开发板上,pin 53 是 hardware SS pin,这支脚位也必须保持为 OUTPUT,不然 SPI bus 就不能动作。

在使用的时候要注意一件事,因为 W5100 和 SD card 共享 SPI bus,所以在同一个时间只能使用其中一个设备。如果你程序里会用到 W5100 和 SD card 两种设备,那在使用对应的 library 时就要特别留意,要避免抢 SPI bus 资源的情形。

假如你确定不会用到其中一个设备的话,你可以在程序里明白地指示 Arduino开发板,方法是: 如果不会用到 SD card,那就把 pin 4 设置成 OUTPUT并把状态改为 high,如果不会用到 W5100,那么便把 pin 10 设置成 OUTPUT并把状态改为 high。

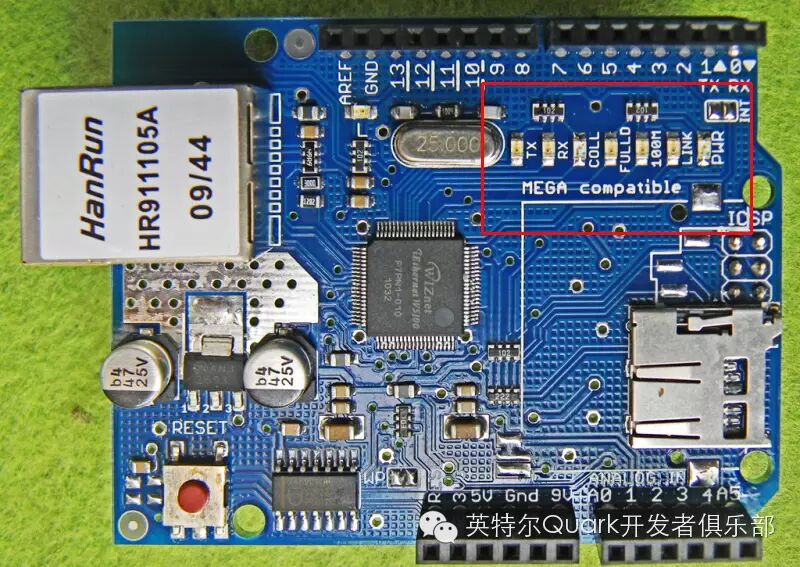

如下图所示,Ethernet Shield状态指示灯 (LEDs)功能列举如下:

•    PWR: 表示 Arduino 控制板和 Ethernet Shield 已经上电

•    LINK: 网络指示灯,当灯号闪烁时代表正在传送或接收数据

•    FULLD: 代表网络联机是全双工

•    100M: 表示网络是 100 MB/s (相对于 10 Mb/s)

•    RX: 接收数据时闪烁

•    TX: 传送数据时闪烁

•    COLL: 闪烁时代表网络上发生封包碰撞的情形 (network collisions are detected)


▲ W5100指示灯

实做亮度监控网站

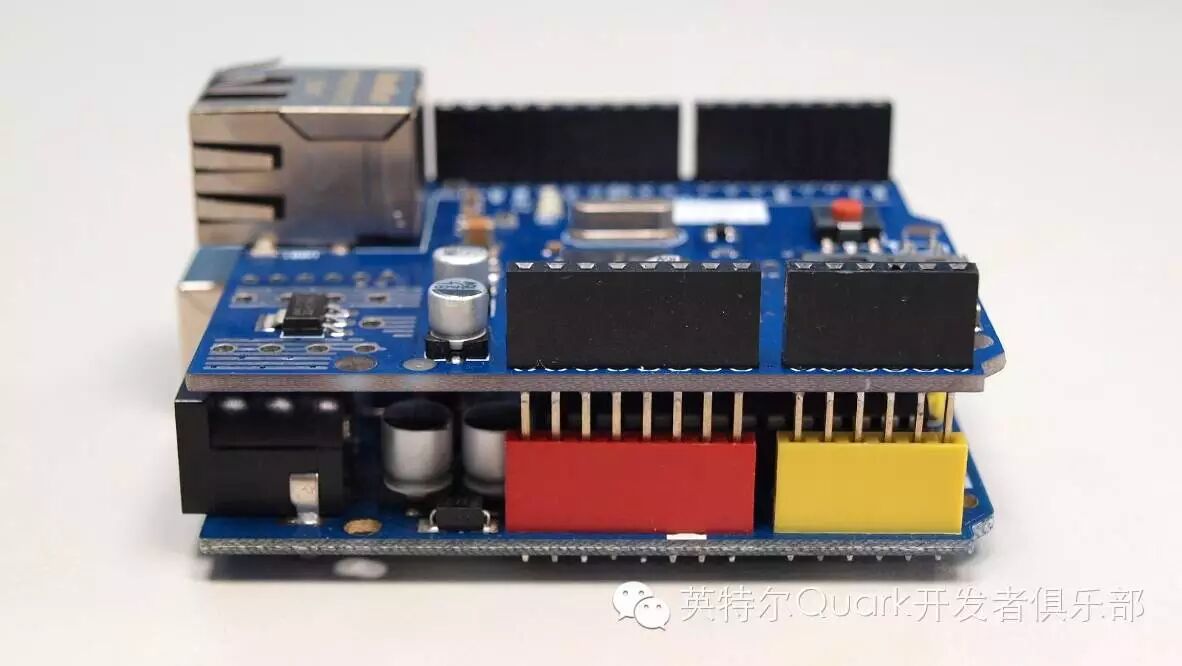

首先,组立W5100 以太网络模块是非常容易的一件事,如下图所示,只要将W5100 以太网络模块堆栈到任何Arduino开发板之上就可以了。


▲ 将Arduino开发板与W5100 以太网络模块堆栈组立

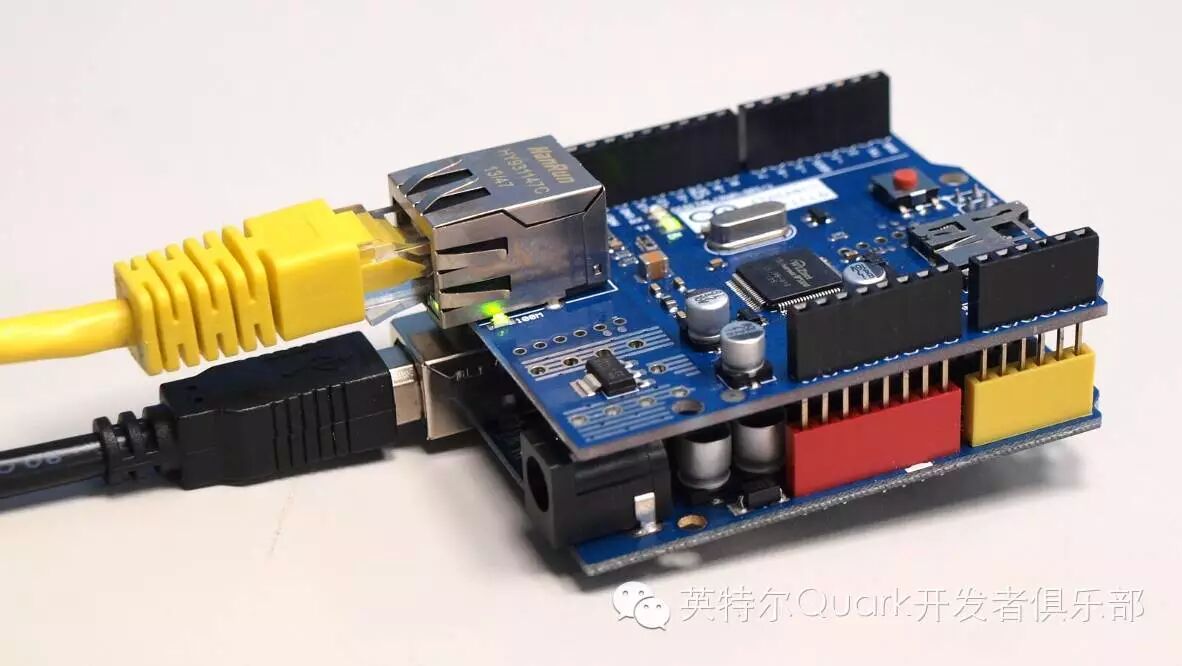

之后,再将组立好的W5100 以太网络模块,如下图所示,只要将USB线差到Arduino开发板,再将RJ 45的网络线一端插到W5100以太网络模块,另一端插到可以上网的集线器(Switch HUB)的任何一个局域网络接口(Lan Port)就可以了。


▲ 接上电源与网络线的W5100 以太网络模块堆栈卡

将Arduino 开发板的驱动程序安装好之后,我们打开Arduino 开发板的开发工具:Sketch IDE整合开发软件,攥写一段程序,如下表所示之实做亮度监控网站测试程序,我们就可以让W5100 以太网络模块堆栈卡变成一台简易的实做亮度监控服务器运作了。

实做亮度监控网站测试程序(LightMonitorServer)


/*

Web Server

A simple web server that shows the value of the analog input pins.

using an Arduino Wiznet Ethernet shield.

Circuit:

* Ethernet shield attached to pins 10, 11, 12, 13

* Analog inputs attached to pins A0 through A5 (optional)

created 18 Dec 2009

by David A. Mellis

modified 9 Apr 2012

by Tom Igoe

*/

#include <SPI.h>

#include <Ethernet.h>

#include <Wire.h>

#include <BH1750.h>

// Enter a MAC address and IP address for your controller below.

// The IP address will be dependent on your local network:

byte mac[] = {

0xAA, 0xBB, 0xCC, 0xDD, 0xEE, 0xFF

};

IPAddress ip(192, 168, 30, 200);

IPAddress dnServer(168, 95, 1, 1);

// the router's gateway address:

IPAddress gateway(192, 168, 30, 254);

// the subnet:

IPAddress subnet(255, 255, 255, 0);

// Initialize the Ethernet server library

// with the IP address and port you want to use

// (port 80 is default for HTTP):

EthernetServer server(80);

BH1750 lightMeter;

void setup() {

lightMeter.begin();

// Open serial communications and wait for port to open:

Serial.begin(9600);

while (!Serial) {

; // wait for serial port to connect. Needed for Leonardo only

}

// start the Ethernet connection and the server:

Ethernet.begin(mac, ip, dnServer, gateway, subnet);

server.begin();

Serial.print("server is at ");

Serial.println(Ethernet.localIP());

}

void loop() {

uint16_t lux = lightMeter.readLightLevel();

// listen for incoming clients

EthernetClient client = server.available();

if (client) {

Serial.println("new client");

// an http request ends with a blank line

boolean currentLineIsBlank = true;

while (client.connected()) {

if (client.available()) {

char c = client.read();

Serial.write(c);

// if you've gotten to the end of the line (received a newline

// character) and the line is blank, the http request has ended,

// so you can send a reply

if (c == '\n' && currentLineIsBlank) {

// send a standard http response header

client.println("HTTP/1.1 200 OK");

client.println("Content-Type: text/html");

client.println("Connection: close");  // the connection will be closed after completion of the response

client.println("Refresh: 5");  // refresh the page automatically every 5 sec

client.println();

client.println("<!DOCTYPE HTML>");

client.println("<html>");

// output the value of each analog input pin

/*

for (int analogChannel = 0; analogChannel < 6; analogChannel++) {

int sensorReading = analogRead(analogChannel);

client.print("analog input ");

client.print(analogChannel);

client.print(" is ");

client.print(sensorReading);

client.println("<br />");

}

*/

client.print("Light: ");

client.print(lux);

client.println(" lx");

client.println("</html>");

break;

}

if (c == '\n') {

// you're starting a new line

currentLineIsBlank = true;

}

else if (c != '\r') {

// you've gotten a character on the current line

currentLineIsBlank = false;

}

}

}

// give the web browser time to receive the data

delay(1);

// close the connection:

client.stop();

Serial.println("client disconnected");

}

}

范例原始码网址:https://github.com/brucetsao/arduino_RFProgramming

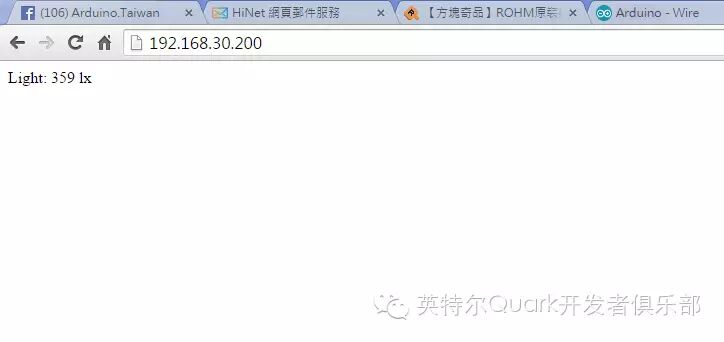

如下图所示,你就可以看到本次实验- 实做亮度监控网站测试程序结果画面。


▲实做亮度监控网站测试程序结果画面

最后,你还可以将家中的虚拟IP透过分享器(NAT),将192.168.30.200转成真时IP, 那么所有在因特网上的使用者,都可以轻易使用任何装置,手机、平板、笔电....等等上网,使用浏览器查看到我们家里的亮度了。
